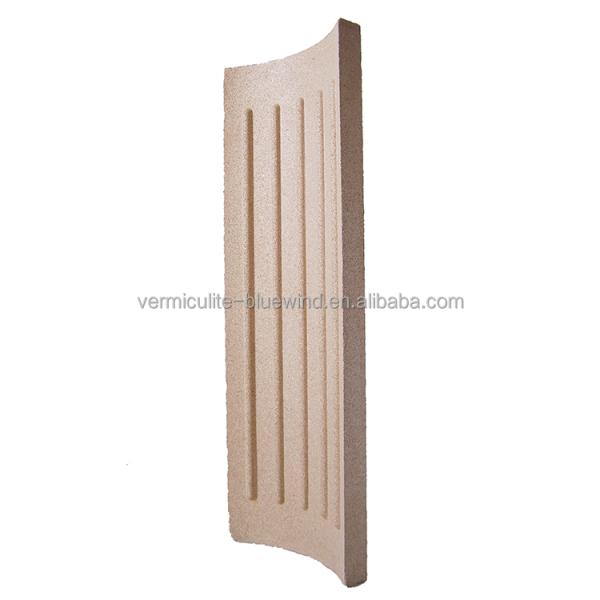

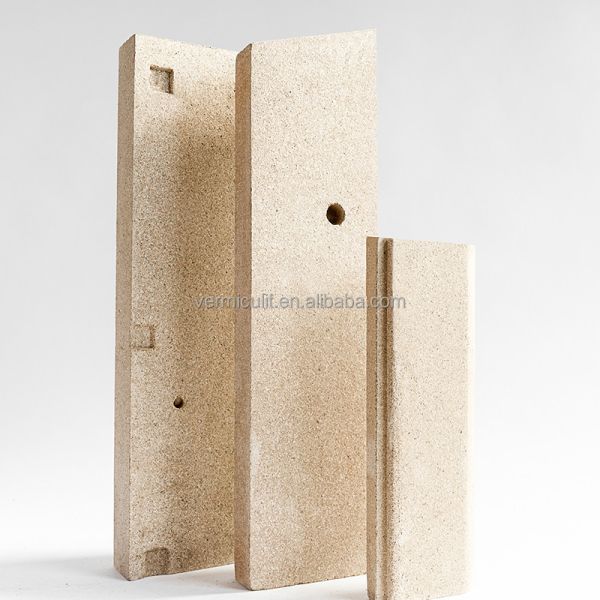

Customized Fireproof Insulation Board

Name: Customized Fireproof Insulation Board
Brand: Bluewind
Price: 6.00 USD

Buy cheap Customized Fireproof Insulation Board product

Place of Origin : Shenzhen, China

Brand Name : Bluewind

Model Number : BW V-1100

Packaging Details : Standard export packing

Supply Ability : 100000 Piece/Pieces per Month

MOQ : 500 pieces

Price : $6.00 - $30.00/pieces

Delivery Time : 15workdays

Warranty : 3 years

After-sale Service : Online technical support

Project Solution Capability : total solution for projects

Application : Office Building, Steel structure of halls, industrial factory

Design Style : Modern

Type : Insulation material for kiln industrial kiln

Material : vermicuilte, Silver vermiculite

Density : 700 kgs/m3

Size : cutting size

Thickness : 10-50 mm

Packing : as customized

Fire resitence : 120 mins 1100 C resistant

Usage : fireproof, insulation cladding

Main market : Domestic, Asia, AU, America

Port : Tianjin Port

Contact Now

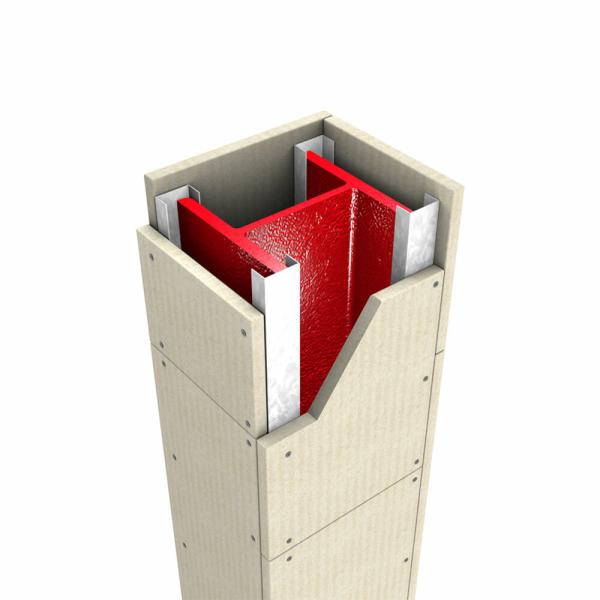

Customized lightweight cutting size vermiculite insulation fire board for steel structure fireproof cladding

Product Description

Vermiculite board:1,100 C heat insulation and fireproof

Color: Silver

Material: Expanded silver vermiculite

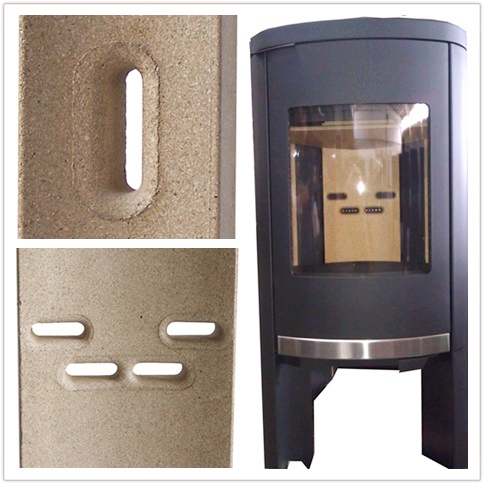

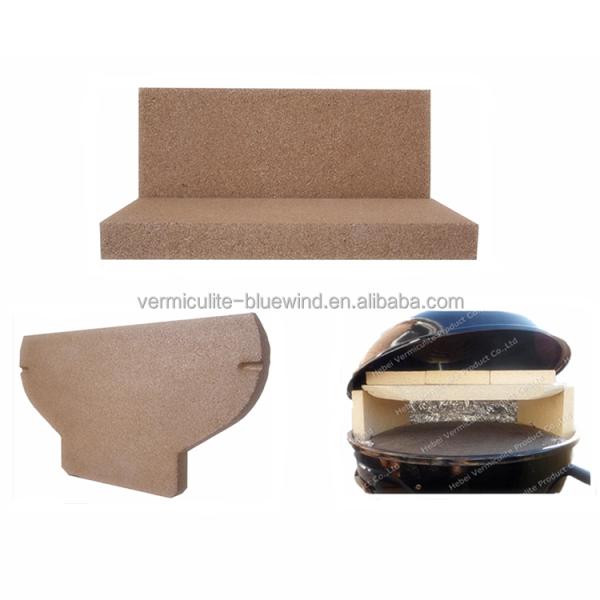

Applying: Wood stoves, Fireplace, Heat Boiler, Melting furnace, Aluminum industry, Fire rated door 240 mins requirement etc.

Product Name	Vermiculite board	Place of Origin	China
Brand	Bluewind	Colour	Silver
Density	800 kgs/m3	Thickness	10-50 mm

Details Images

Related Products

$15 - $ 20 Pieces

1000 Pieces (MOQ)

$5 - $10 Pieces

2000 Pieces (MOQ)

$10 - $ 20 Pieces

1000 Pieces (MOQ)

Product Paramenters

Physical parameter
Density (kgs/m3)	700	800	900
Max temp.	1150 ℃	1150 ℃	1150 ℃
Strength	4.5/2.0 MPa	5.5/2.1 MPa	6.2/2.2 MPa
Linear shrinkage	1%	1%	1%
Thermal conduct.
@ 200 ℃	0.14 W/m.k	0.16 W/m.k	0.18 W/m.k
@ 400 ℃	0.16W/m.k	0.18 W/m.k	0.2 W/m.k
@ 600 ℃	0.18 W/m.k	0.2 W/m.k	0.22 W/m.k
Chemical parameter
SiO2	43-46 %	43-46 %	45-48 %
Al2O3	10-13 %	10-13 %	13-16 %
Fe2O3	4-6 %	4-6 %	4-6 %
TiO	1-2 %	1-2 %	1-2 %
MgO	16-23 %	16-23 %	14-20 %
K2O	7-10 %	7-10 %	5-8 %
Na2O	1-2 %	1-2 %	1-2 %
LOI @ 1000 C	4-6 %	4-6 %	3-5 %
Standard size & Thickness
1000*610 mm	10-60 mm thickness	10-60 mm thickness	10-60 mm thickness
1200*1000 mm	10-60 mm thickness	10-60 mm thickness	10-60 mm thickness

Data are average results of tests conducted under standard precedures and are subject to variation.

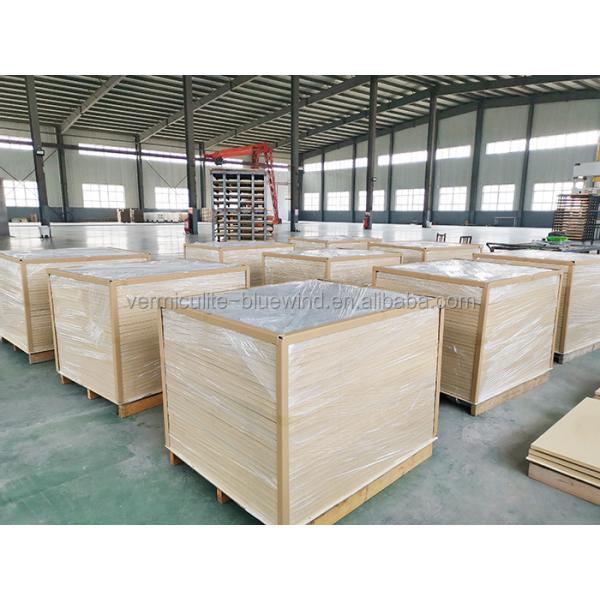

Product Packaging

Production Process

Pressing

High pressure mould pressing to form the shapes required

Drying

Drying for release the water contained and form the stable applying

Quality checking

For each unit we have one by one checking to ensure the end using.

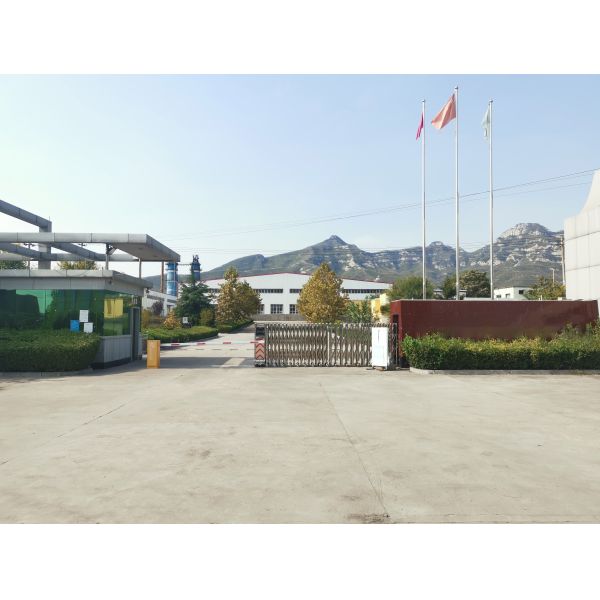

Company Profile

Shenzhen Bluewind Vermiculite Products Co., Ltd. is a wholesale company that manufactures good & high quality vermiculite products, starting from 2006 and upgrade in 2020. The company provides the customized products and OEM service. Various density and thickness plain products are wholesale offered and customized shapes with mold pressing welcomed.
With good physical parameters, the vermiculite boards are widely applied in Pallet Stoves, Gas Stoves, Gas Boiler, Fire Doors, Metal Melting Furnace, Ceramic Furnace etc. And 15 years exporting experience proved that the quality of Bluewind Vermiculite is trust worthy and reliable. Sincerely welcome to contact for business.

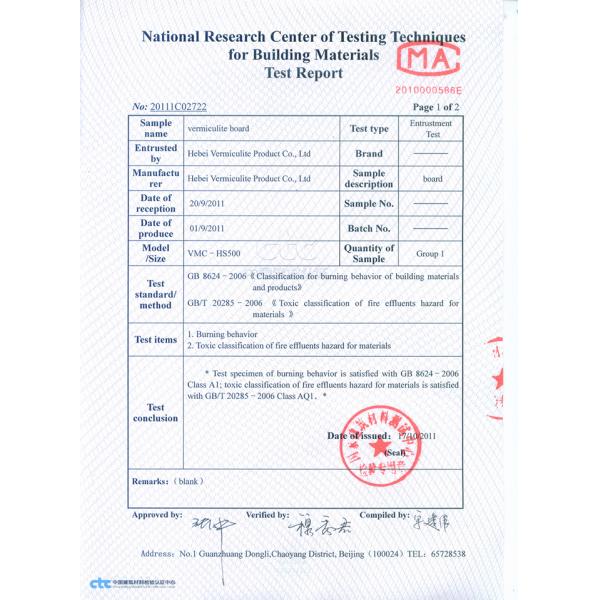

Certifications
